INTRODUCTION
The words nanoscience and nanotechnology have become most common in day to day life. In recent years, Nanomaterials have gained a huge momentum as they exhibit unusual intriguing properties as well as enhanced properties when compared to bulk materials. The semiconductor nanocrystals are of significant interest and focus in the last decades owing to their technological applications. The electrical, optical and magnetic properties of such particles are highly dependent on the size of the particle [1]. It is established that SnO2 is an n-type semiconductor which has a wide band gap, Eg, of 3.64 eV. The valence band is closed shell of oxygen 2S2, 2P6 state mixed with some Sn states. The structure of the material in its bulk form is tetragonal rutile [2]. The sign of the Hall voltage determines the type of the carriers (+ for p-type, - for n-type) semiconductor. Sn forms an interstitial bond with oxygen and exists either as SnO or SnO2, hence has a valency of +2 or +4, respectively. This valency state has a direct bearing on the ultimate conductivity of Tin Oxide. The lower valence state results in a net reduction in carrier concentration since a hole is created which acts as a trap and reduces conductivity. On the other hand, predominance of SnO2 state means Sn4+ acts as an n-type donor-releasing electron to the conduction band. The large value of n indicates that Sn forms bond with oxygen and exists as SnO2. It is found that the SnO2 behave as n-type semi-conductors. It finds a wide range of applications such as transparent conducting electrodes, solid-state gas sensors [3], devices in liquid crystal display, rechargeable Li batteries [4] photoconductive, gas discharge display, catalyst [5], spintronics, optoelectronics devices, etc. [6].
So far, several techniques for synthesizing SnO2 nanostructures have been proposed, namely, spray pyrolysis, hydrothermal, methods, chemical vapour deposition, thermal evaporations of tin oxide powder and sol-gel [7] and co-precipitation method. Of these methods, in this work, we choose the co-precipitation method for synthesizing SnO2 nanostructured materials because of its relatively low processing cost, much milder and the ability to control the grain size [8]. After the successful preparation of the material, the important characteristics, namely, structural analysis, optical and thermal properties have been studied.
EXPERIMENT

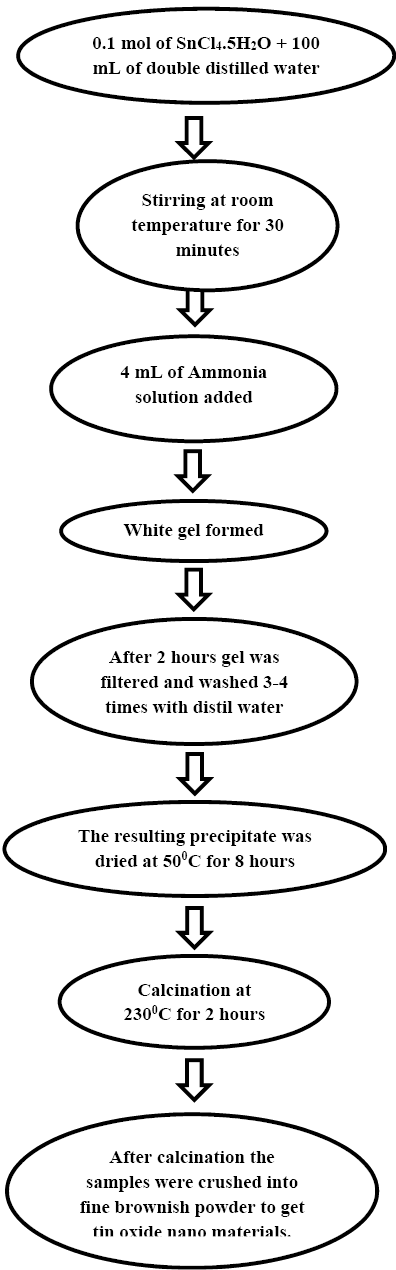

The SnO2 nanocrystalline materials were prepared by the chemical co-precipitation method. All the chemical reagents were used of AR grade. Tin(IV) chloride pent hydrate SnCl4.5H2O 98% [Chemicals, India] and ammonia solution NH3.H2O 30% [Loba Chemicals, India] were used as starting materials. The co-precipitation technique was used for the synthesis of tin oxide nanopowder. In the synthesis process (Flowchart Fig. 1), Tin (IV) chloride pent hydrate (3.5058 gram of SnCl4.5H2O) was dissolved in 100 mL double distilled water in a beaker and 100mL of ethanol was added into the beaker. The resulting precursor mixture was kept for stirring on a magnetic stirrer (make: Remi) at 3000 rpm for 30 minutes. Further, 4 mL an aqueous ammonia solution was added to this solution by stirring this mixture with a rate of 10 drops/minute. During this process, the dropping rate was well controlled for the chemical homogeneity to from white slurry. The resulting slurry was filtered by using pore size of whatman filter paper no 42 and then washed for 3 hours with double distilled water to remove the impurities by washing 4 times. The resulting precipitate was heated in an oven at 50 oC for 8 hours to remove water molecules and calcinated at 230 ◦C for 2 hours
The prepared sample was characterized by a Philips PW1700 (operated at 40 kV and current of 30 mA) XRD to study the crystalline phase structure. Here, the sample was scanned between 200 and 800 at a scanning speed of 0.020/sec with Cu Kα (λ=1.5406 ◦A) as a radiation source. The FTIR spectrum of the sample was studied using an AVATAR 360 spectrometer with KBr as compressed slices in the range of 4000-400 cm-1. An optical absorption spectrum of the sample was recorded with OPTIMA SP-3000 UV-VIS spectrometer. The PL measurements were carried out at room temperature using 275 nm as the excitation wavelength with a Hitachi f-4500 FL Spectrophotometer where Xe lamp is used as the excitation source. In addition, HRTEM was taken with a JEOL – 3010 operating at 200 KV. The thermal behaviour of as dried sample was investigated by shimadzu DTA-60H apparatus.
RESULTS AND DISCUSSION
Structural properties by XRD

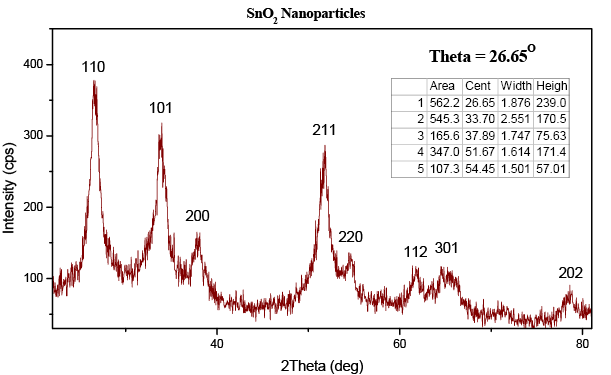

The XRD is used to identify the crystalline structure and average particle size of the samples. XRD pattern of the prepared SnO2 is shown in Fig. 1. The diffraction peaks have been indexed to the tetragonal rutile phase of SnO2 JCPDS Card No.88-0287, a=4.737 ◦A, c=3.186 ◦A [1]. It is to be noted that no other crystalline by-products are found in the pattern which indicates that the as-prepared sample has a pure rutile structure with good crystallinity. From Fig. 2, it is clear that the relative intensities of (110) peak are the largest [9]. In Table 1, the experimental data have been compared with JCPDS data. Having the explored the structural analysis, the next step is to calculate the average size of the particle. Here, the average particle size was calculated using the Scherrer’s formula.
D= Kλ/ βcosθ
where D is the average crystallite size, K is the shape factor usually has a value 0.9, λ is the X-Ray wavelength and θ is the Bragg diffraction angle of the diffraction peaks and β gives the full width of the half maxima (FWHM). By using the above formula, the average particle size was found to be 24 nm.
Thermal behaviour of SnO2 nanoparticles

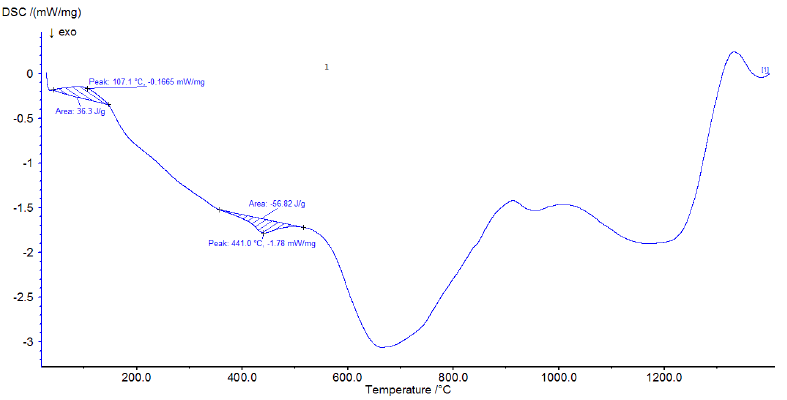

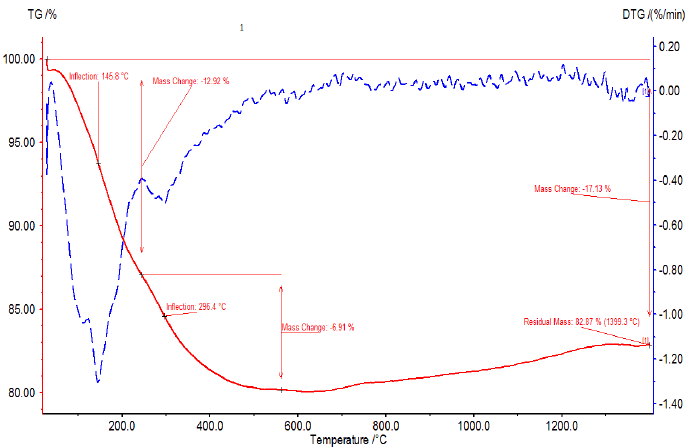

The thermal analysis of SnO2 using TG-DTA/DSC is shown in Fig. 3. The weight loss is due to the elimination of ammonia, physically adsorbed water, and chemically bonded water. Hence, the total weight loss is 17.13%, which occurred in two stages: I and II. A large amount of weight loss (12.92%) appears in the first stage in the temperature range between room temperature and 145.8◦C which is attributed to dehydration of water molecules on the surface of particles. This process was confirmed by an exothermic peak at 107.1◦C, -0.1665 mW / mg around the area of 36.3 J/gin DSC. In the second stage, melting takes place from 145.1◦C to 560◦C that corresponds to the elimination of the hydroxyl group and decomposition of ammonia, respectively. This process was described by an Endothermic peak around at 441 ◦C, -1.78 mW / mg around area 56.82 J/g in DSC [10, 12]. The weight loss in this stage is 6.91%. After 560 ◦C, the weight loss was occurred due to the elimination of the little amount of residual hydroxyl group during the development of tin dioxide nanoparticles. The peak around 1299.3◦C is corresponding to maybe decomposition or sublimation of NH3[10-11].
Fourier transforms spectroscopy (FTIR)
It is well known that FTIR is usually employed as an additional probe to identify the presence of O-H group as well as other organic& inorganic species. The FTIR spectrum in the range 4000-400 cm-1 of the as-synthesized sample is depicted in Fig. 4. For the as-synthesized SnO2 nanostructures, the spectra were recorded in the range of 400–4000 cm-1 for confirmation of SnO2. The band appears in the value of 1020.3 cm-1 is assigned to Sn–O antisymmetric vibration for all the samples. The peaks in the range of 1634.26 cm-1 and 3397–3872 cm-1 are related to the OH stretching of the hydroxyl group. There is no band observed for the existence of CO2 molecule in the air. The broadband 619 cm-1 is attributed to the framework vibrations of the O-Sn-O bond in SnO2 [6].
Optical Properties
The absorption spectrum of the SnO2 nanoparticle is shown in Figs. 5 and 6, and the value of the absorption is 344.99(8) nm. Considering the blue of the absorption positions from the bulk SnO2, the absorption onsets of the present samples can be assigned to the direct transition of an electron in the SnO2 nanocrystals. The optical band gap energy (Eg) of the corresponding samples is calculated by Tauc plot by using the following equation,
α(hν) = A (hν - Eg)n,
where, Egis the apparent optical band gap, α is an absorption coefficient, h is Planck constant, A is a constant relative to the semiconducting material and ‘n’ is a value that depends on the nature of transition (n=2 for direct band gap, 2/3 for direct forbidden gap and ½ for indirect band gap). ν is the frequency and hν is the incident photon energy. Fig.9 represents the plot of (αhν) 2 vs hν for SnO2 nanocrystallites.
The direct band gap (Eg) of our samples is measured from the absorption coefficient data as a function of wavelength using Tauc relation. By extrapolating the straight line of the (αhν) 2 vs hν plot, the energy band gap was found to 3.05 eV. It is clear that obtained tin oxide has the optical band gap larger than the value of 3.64 eV for bulk SnO2 [13-14].
Photoluminescence Spectra
Photoluminescence (PL) spectroscopy is a suitable technique to determine the crystalline quality and the exaction fine structure. PL measurements at room temperature were performed to know the optical properties of SnO2. Fig. 8 represents the PL spectrum of SnO2 nanoparticles at room temperature. The sample exhibits two strong emission bands at 605 and 651 nm. Since the energy gap of bulk SnO2 is 3.62 eV the two observed PL bands cannot be assigned to direct recombination of a conduction electron in the Sn, 4d band with a hole in the O, 2p valence band. [15]. Generally, defects such as oxygen vacancies are known to be the most common defects in oxides which are responsible for the broad peaks at higher wavelength and are consistent with the earlier reports[16-19] The sharp band at 567 nm is attributed to oxygen vacancies, which are mainly located on the surface of the nanostructures and can form a series of metastable energy levels within the band gap of SnO2 by trapping electrons from the valence band to make a contribution to the luminescence or Sn interstitials that have formed during the synthesis process [20].
HR-TEM Analysis
Fig. 9 (a, b) shows the HRTEM micrograph of the synthesized SnO2 sample. The size of the particles estimated from the HR-TEM image is about 20.52 nm. From Fig.9 clear lattice fringes indicate the established crystallinity of SnO2 nanoparticles. The distance between the consecutive lattice fringes was found to be 0.39 nm which is in good agreement with the lattice spacing of (110) plane in the SnO2. Moreover, this is also in agreement with the XRD analytical result, which, in turn, implies that the SnO2 nanoparticle with small average particle size is well crystallized.
Fig. 9(c) shows the electron diffraction patterns of the sample. It is clear from Fig. 9(c) that the SnO2 particles are crystalline in nature. The electron diffraction patterns show continuous ring patterns without any additional diffraction spots and rings of secondary phases, revealing their crystalline structure. It has been found that the fringe patterns corresponding to planes (110), (101), (200), (211), (220), (310), and (301) are consistent with the peaks observed in the XRD patterns. XRD and HR-TEM studies confirmed the pure tetragonal structure of SnO2. For the tetragonal phase of SnO2, Gu et al reported that the (110) and (001) surfaces have the lowest and the highest surface energies, respectively [6-7].
Hall Effect
Besides the above characteristics, we also determine the Hall coefficient for the prepared sample. It is used to identify the nature of semiconductor. The Hall voltage (VH) was measured as a function of the perpendicular magnetic field (B) for different drive currents (I). These measurements were performed for different temperatures. The drive current is supplied by Keighley ac current source, which is fed to the reference input of an EG and G instruments of DSP lock-in amplifier, which measures the Hall voltage. The measurements frequency is f = 227Hz.
Hall voltage was measured for various values of applied magnetic field and current through the samples at room temperature as shown in Fig 10. From Fig.10, the Hall voltage (VH) increases with the bias current. From the Hall Effect studies, it is observed that the conductivity and carrier mobility are linearly related while the carrier mobility is inversed of the carrier density. The Hall voltages have been found to be indicating that the n-type semiconductor [21]. The Hall coefficient (RH) and carrier concentration (n) have been determined.
CONCLUSION
In conclusion, tetragonal shape SnO2 nanoparticles have been successfully prepared by co-precipitation method. The structural properties of the prepared SnO2 sample were investigated using the XRD pattern the average crystallite size was found to be 54 nm. Further, thermal and optical properties have also been investigated by TGA, UV-Vis, and PL studies. Here, UV-Vis analysis showed the characteristic absorbance peak at 345 nm. In addition, the band gap of was estimated to be 3.05 eV which is greater than that of the bulk SnO2. In the PL emission spectrum, three peaks were found at 500, 605 and 651nm, due to the oxygen vacancy defect. Finally, Hall coefficient was also estimated for various values of an applied magnetic field and bias current applied to the sample. From the detailed study, it has been found that the prepared sample is an n-type semiconductor.
